Inspiration

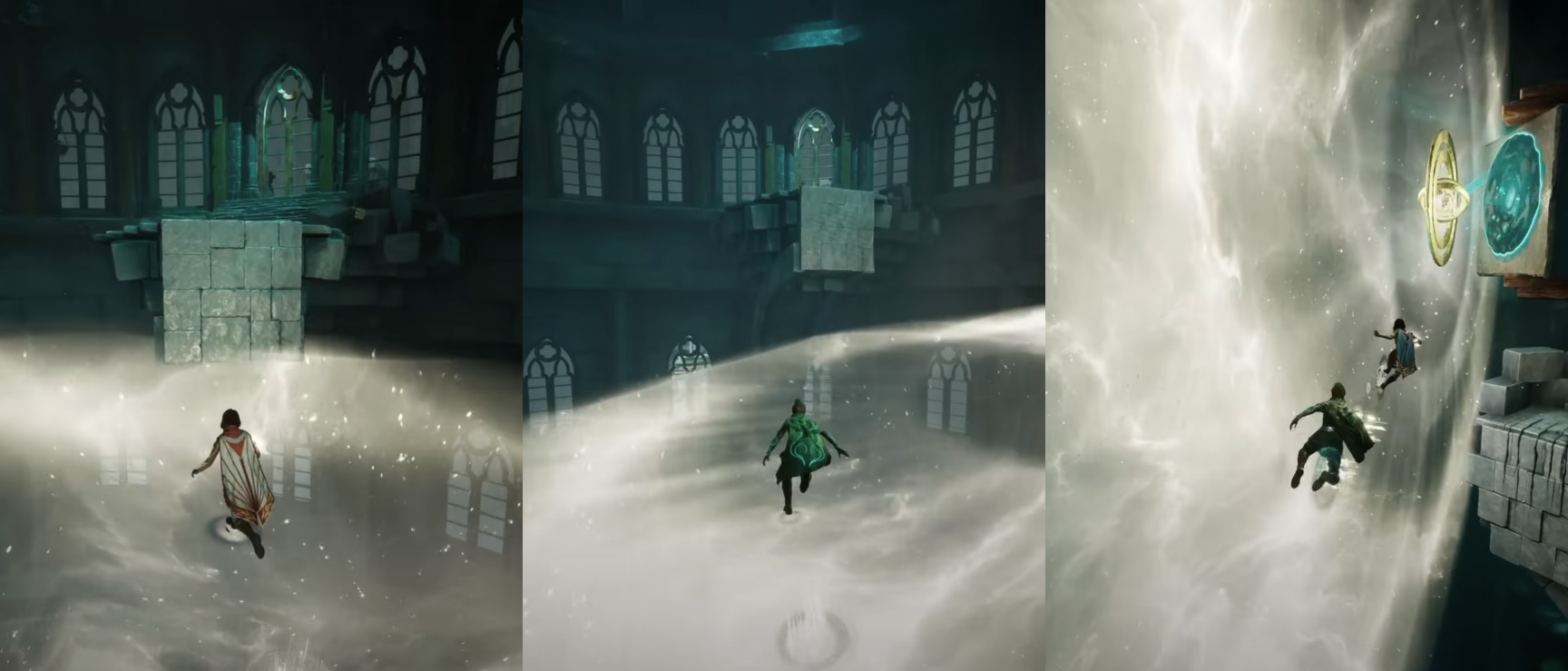

I set out to capture the essence of a shimmering, ethereal floor I'd seen in the Split Fiction game — rippling footsteps, radial light, drifting particles.

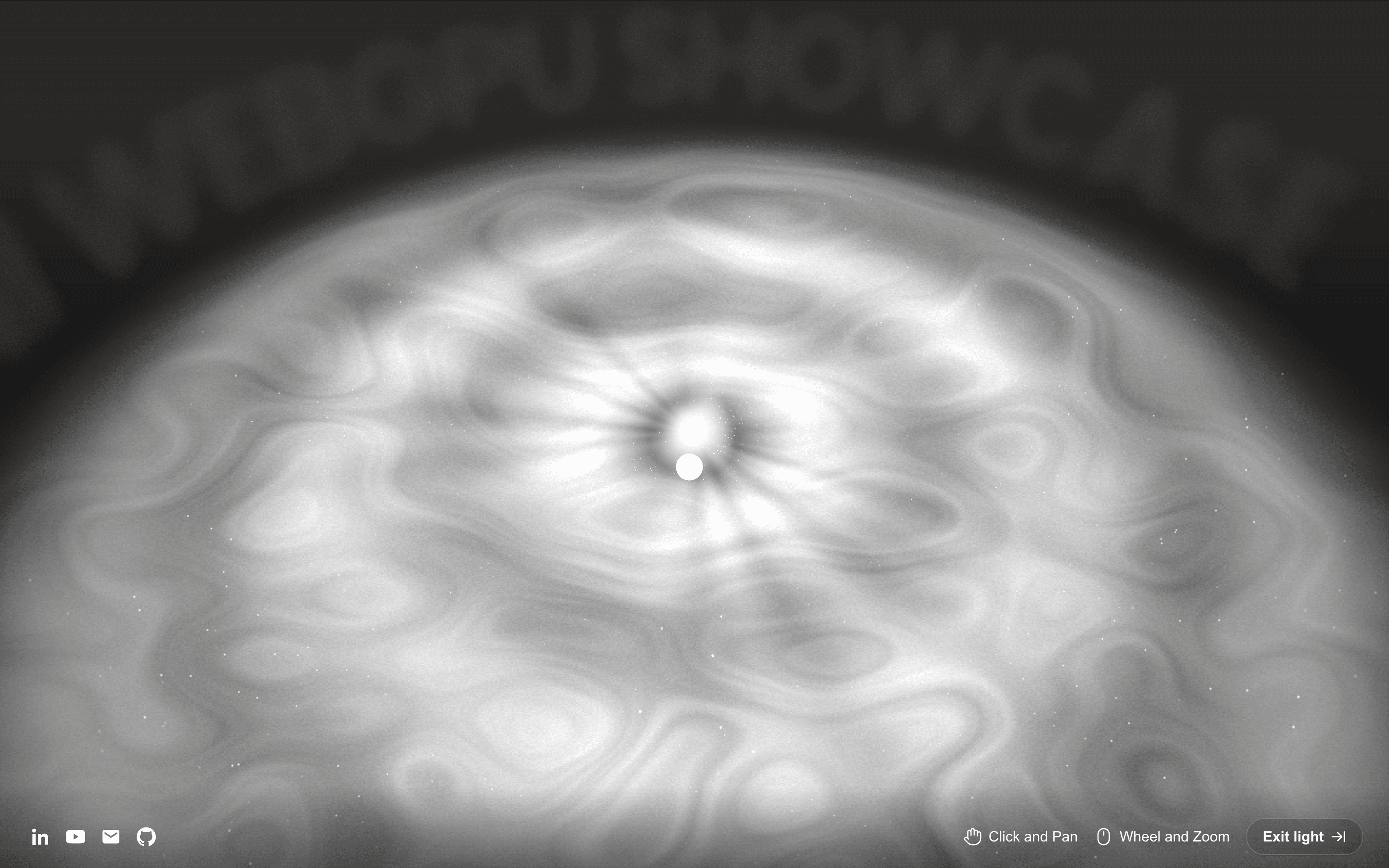

The result is a WebGPU-powered plane that reacts to player movement and evolves with lighting and pulses.
Overview
There are thousands of lines of code in the project, so we'll just cover high level details here.
If you want the full picture, dive into the repo.
Player Movement
Keyboard input (WASD/Arrows) is captured in an event listener and stored in a ref.
Inside the frame hook, there are 2 helper functions:
updatePlayerSpeed- eases the speed up/down for smoother motion, and sets the speed uniform.updatePlayerPosition- calculates the new player position and clamps it to the arena; calculates the bounce; sets the mesh position; and updates the shader uniform.
In order to syncronise the mesh position with the ripple impact, an additional 'bounce phase' value is stored in the player position vector.
Finally, the renderer.compute([computeHeight]) is called to update the ripple simulation.
Water Ripple Simulation
The player's position and speed drive a simple, efficient height-field simulation.
When the player bounces down at speed, it applies an impulse that spreads out as ripples.
The computeHeight function runs over a square grid on the GPU, diffusing neighbor heights with viscosity.
The resulting height is visualised in the shader.
The water ripple simulation was gratefully "borrowed" from the ThreeJS example here.
Floor Plane Shading
The surface is coloured using several functions layered together:
getFractalColour: background gradient with fractal noisegetGodRays: soft radial beams from the centergetPulsesColour: concentric pulses that breathe over timegetHeightColour: visualises water simulation heightgetGrainyNoise: adds subtle film grain for texture
In combination these create a rich, dynamic surface that changes over time and with player movement.

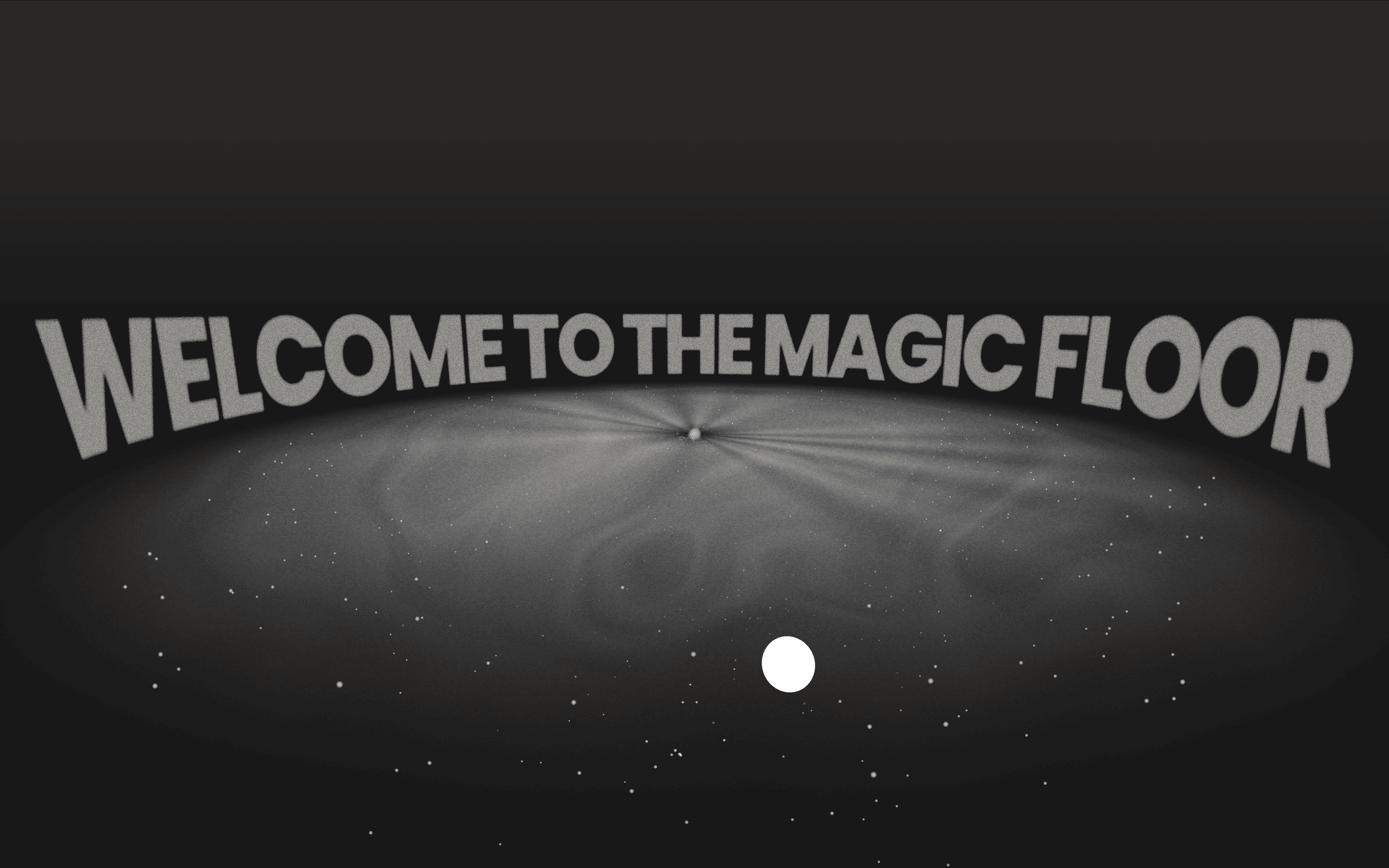

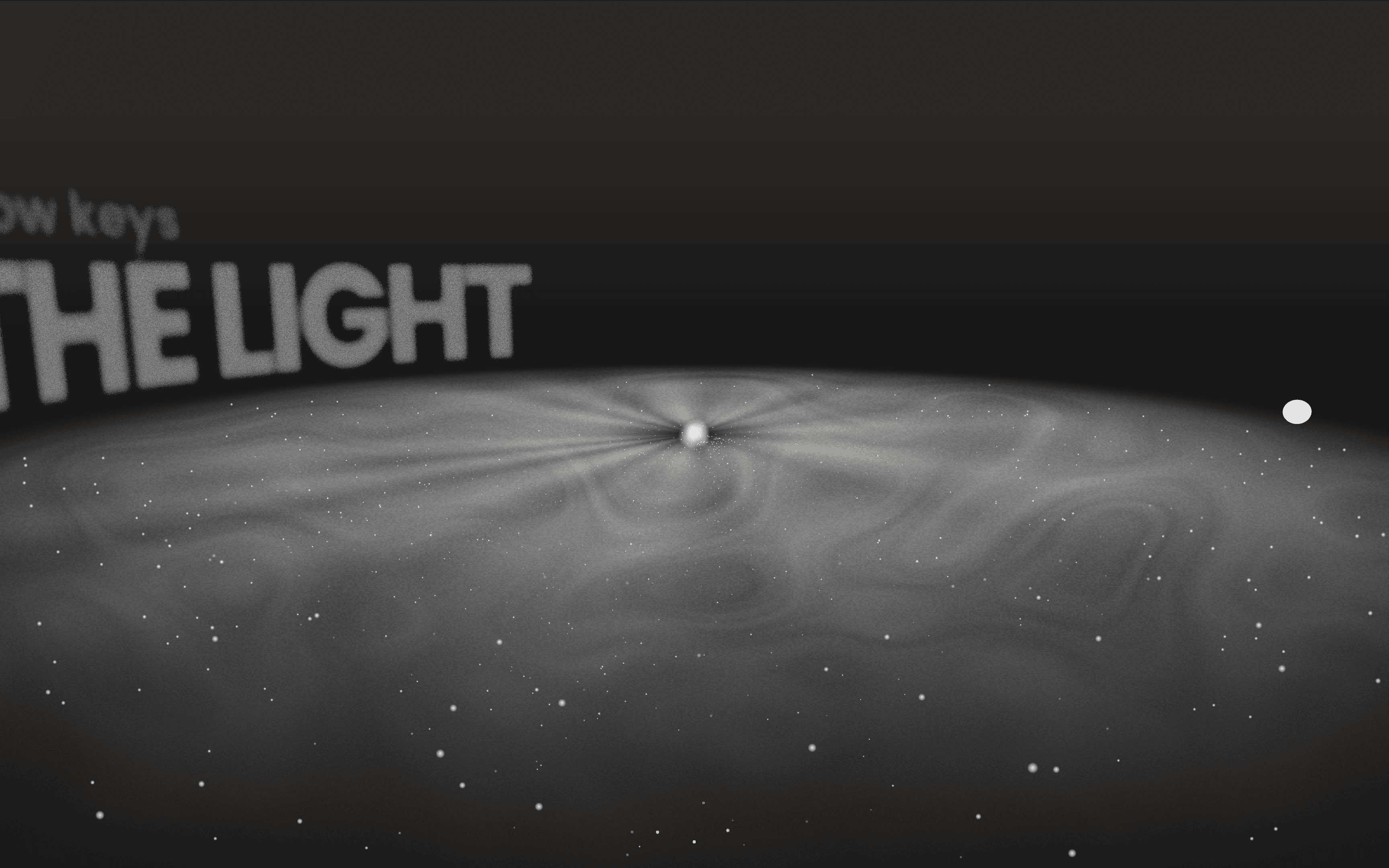

3D Wrapped Text with Noise and Blur
I experimented first with true 3D text, but it was not going to be easy or performant to apply the effects that I wanted (e.g blur and noise).
So I opted for a texture based approach instead. Seeing as the text is on the outside, having it "flat" isn't a big deal.
The text is drawn to an off-screen 2D canvas sized to match the cylinder's surface.
It's then applied to the node material as a CanvasTexture.
This allows me to easily apply an additional noise effect in the colorNode to give it a grainy, imperfect look.
On stage changes (as the player moves closer to the center), GSAP is used to blur out, update the text, and then blur back in. Between these stage transitions it gently animates between transparent blurred and opaque sharp.
Drifting Particles
Particles are distributed in a shallow hemisphere under the plane in an initial compute pass. They then drift and flicker using custom position and opacity nodes.
The future of Web(GPU) is bright
It's becoming increasingly feasible to build complex, game-like web experiences that run almost as smoothly as native apps.
As hardware continues to improve, I predict that more web experiences will utilise GPU capabilities and 3D environments to deliver rich, interactive content.
I'm excited for the future of WebGPU and TSL - these advancements empower web developers to bring new ideas to life with greater ease and performance.
https://github.com/prag-matt-ic/magic-floor-player-movement-three-webgpu
